D® SERIES
|
Rated loading |
5000kg |
|
Overall weight |
17500kg |
|
Rated bucket capacity |
3.0m3 |
|
Maximum tractive force |
≥95KN |
|
Maximum breakout force |
≥89KN |
|
Maximum gradeability |
30° |
|
Maximum dump height |
4100mm |
|
Maximum dump reach |
1050mm |
|
Overall dimension(L×W×H) |
8123*2300*3680mm |
|
Minimum turning radius |
6500mm |
|
Engine Model |
ATM- |
|
Optional model |
CUMMINS |
|
Engine Type |
Vertical,in- |
|
Rated power |
160KW |
|
Rated speed |
2400 RPM |
WM500
Engine power
220hp / 160kw
Gross weight
17.5Tn
Bucket capacity
3.0m3

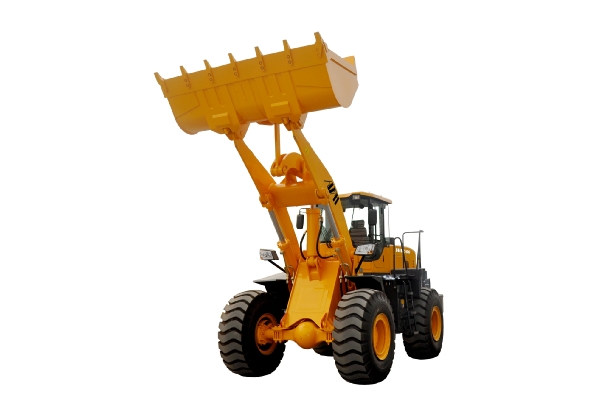

Wheel loaders
The best of the market, reliable, durable, easy to mantain.
ATM wheel loaders offer high levels of comfort and safety, its spacious cabin with greater viewing space allows the operator to appreciate objects with ease. The loading and unloading cycles have also improved, as well as the fuel efficiency.
